The same input terminals are used regardless of AC input voltage, 115 or 220 but strapping must change on the bottom of the pcb.

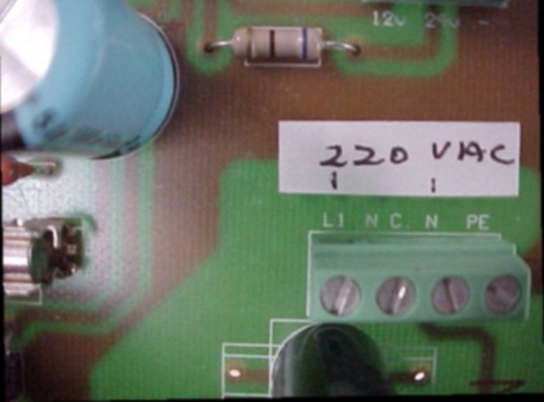

• Top photo shows that the unit has been strapped on the bottom of the board for 230VAC
• It also indicates the Primary Power connections at L1 and N
• Note that these power supplies are normally strapped for 115 VAC and the sticker is not present

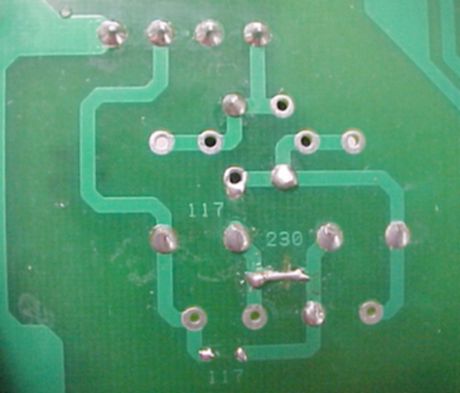

• Here we see strapping for 230 VAC
• The circuit board must be removed to change the strapping 115 to 230.
• This change should be made by a competent technician.
