Naval Couplers and Splitters for marine MATV systems sp2f sp4f to2f to4f

Naval Ground Isolated Passives for Marine Radio and TV
(Naval Splitters and Tap Off)

The Splitters and Tap Off are passives or couplers for Marine Radio -TV and MATV use.

Its plated cast housing is isolated from ground to prevent problems caused by ground loops on a steel ship.

F connectors are integral to the casting to allow Cable connetors to be wrench torqued without damaging internal circuitry.

The metal case provides ample EMI isolation to meet IMO and CE mark requirements.

For Tap off isolation values are available from 10 db through 21 db to assist in balancing the ship's Radio and TV distribution system.

These specially made devices will pass AM//HF/SW radio signals whereas normal CATV passives block all signals below 5 MHz.

AM SW HF FM Radio Splitters and Directional Couplers (Tap Offs) Passives

2-way and single drop directional couplers and splitters/combiners are also available.

For specifications and more details << Splitters and Tap Off Data Sheet >> << Other Naval Products Catalog >>

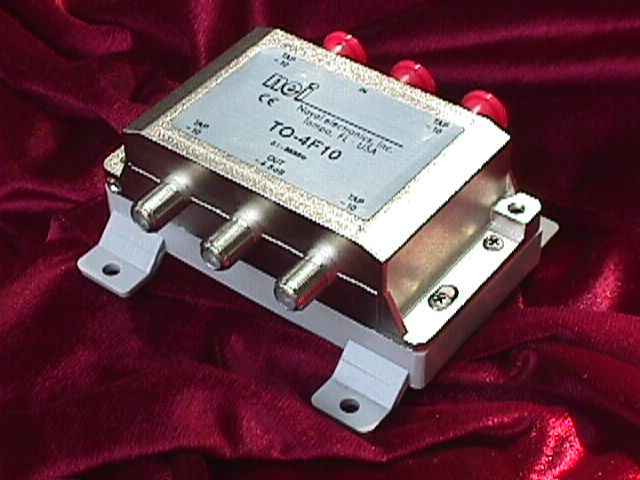

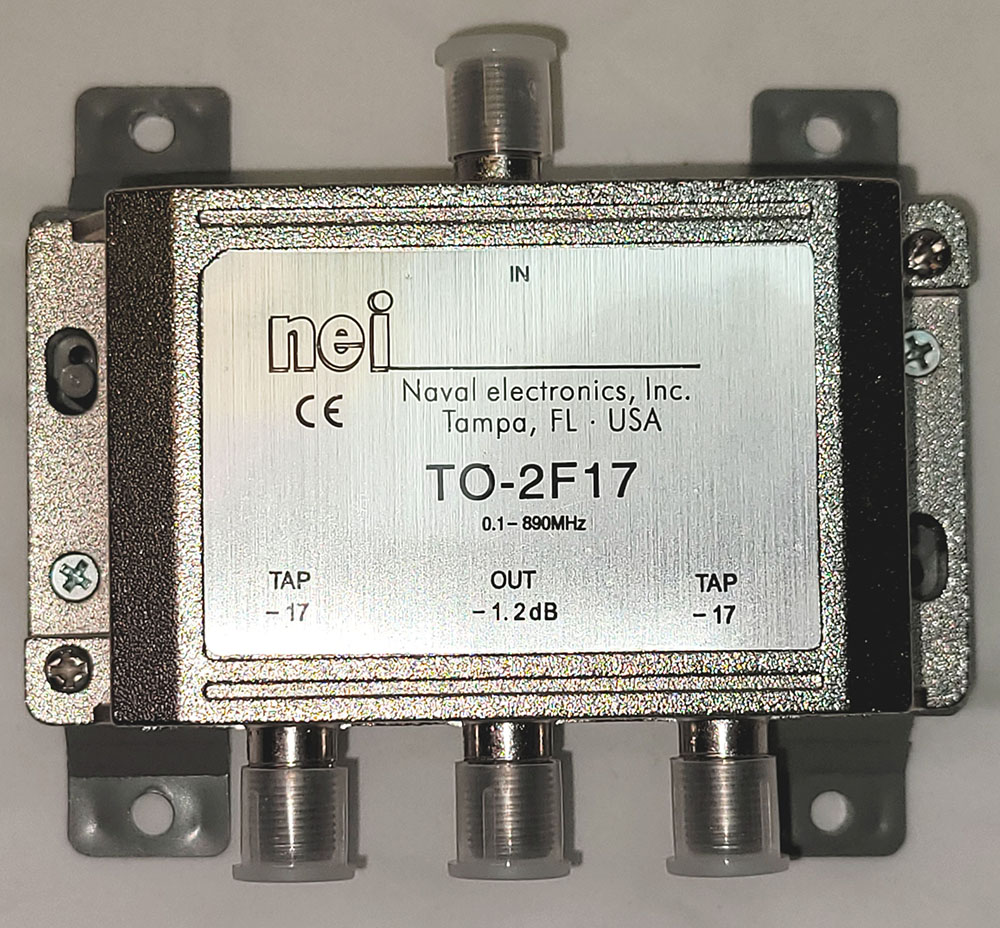

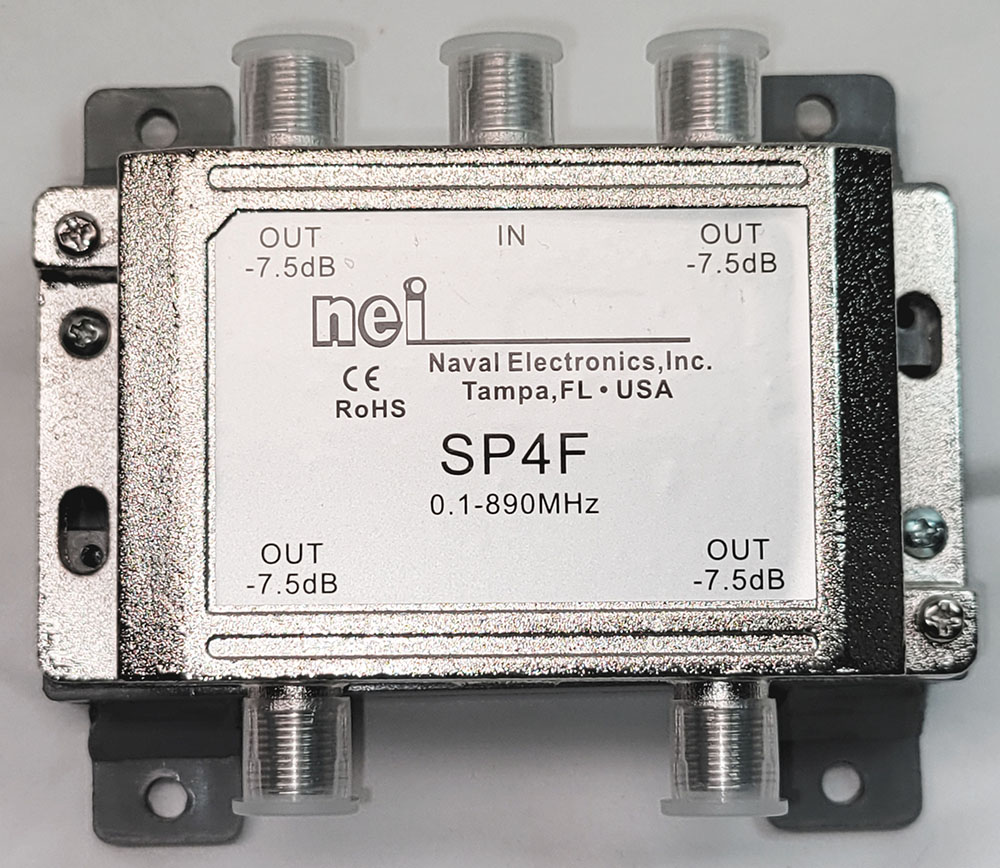

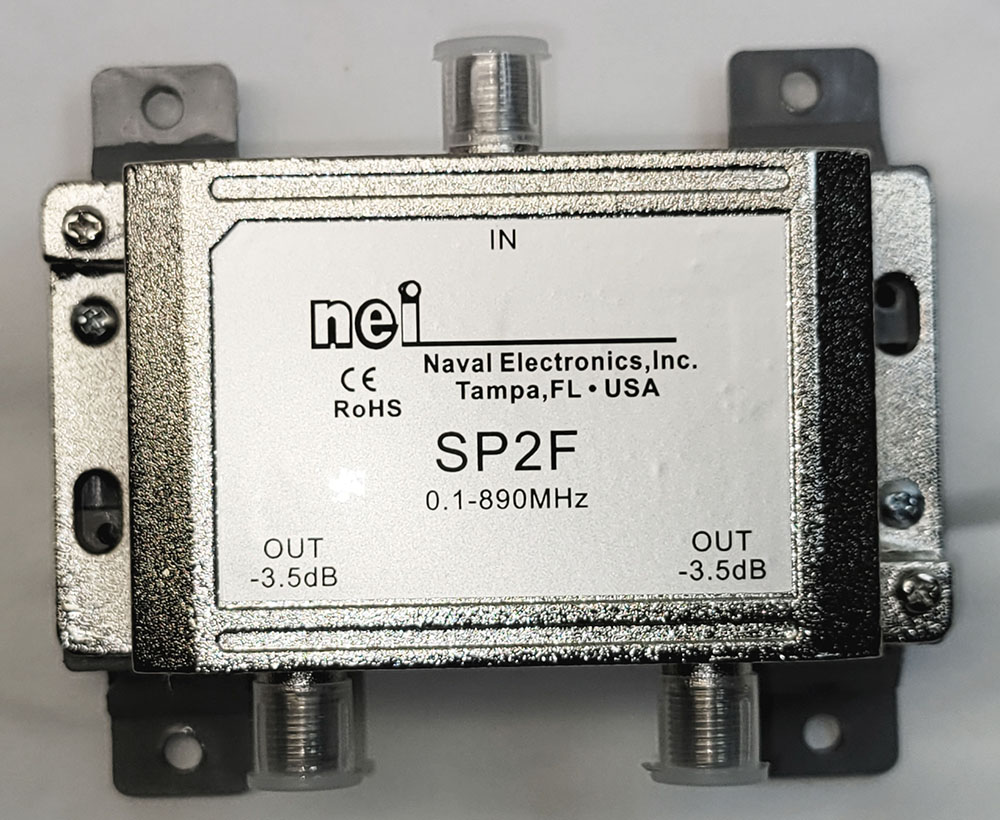

Naval Splitters and Directional Couplers (Tap-off)
National Item Identification Numbers NIIN, National Stock Numbers (NSN)
Cage Code: 0GMC3, PICA: GX

No	No	Part No	Part Name	FSC	NIIN	NSN
201.556	401.556	SP2F	2 way Splitter	5985	013696880	5985013696880
201.555	401.555	SP4F	4 way Splitter	5985	014377271	5985014377271
		TO2F	2 way Tap Off	5985	013733206	5985013733206
201.557	401.557	TO2F-8	4 way Tap Off 8dB	5985
201.554	401.554	TO2F-12	2 way Tap Off 12dB	5985
201.551	401.551	TO2F-17	2 way Tap Off 17dB	5985	014628016	5985014628016
201.558	401.558	TO2F-21	2 way Tap Off 21dB	5985
		TO4F	4 way Tap Off	5985	013730607	5985013730607
201.559	401.559	TO4F-10	4 way Tap Off 10dB	5985
201.552	401.552	TO4F-12	4 way Tap Off 12dB	5985
201.550	401.550	TO4F-17	4 way Tap Off 17dB	5985	014612083	5985014612083
201.553	401.553	TO4F-21	4 way Tap Off 21dB	5985

TR-75F, 75 ohm terminating resistor “F” type PN 500.207 DUMMY LOAD, ELECTRIC NSN: 5985-01-352-9585
