PR-422CA AM-SW-FM/DAB+ TV Marine Antenna
For Ships at Sea
The PR-422 is an Active Extra High
Performance Omni-directional wide-band Terrestiral AM-SW-FM/DAB+ TV
Antenna ( 0.1-30 and 40-860 MHz ) for Maritime use where second rate
efficiency is unacceptable.
The PR-422 is designed for High End Commercial and Military vessels
and is based on a configuration of 3 circular dipoles (one is a
special flexable printed circuit) coupled to 3 parallel amplifiers (7
transistors) via a separate broadband filter network. Maximum
performance is assured through use of a newly designed set of elements
and the extensive use of a Network Analyzer in the initial design and
in the final construction and tuning of each unit. Microwave
transistors provide needed gain with a minimum of internally generated
noise.
Careful engineering and the use of very high quality temperature
compensating components yields excellent intermod performance and sharp
hand tuned filters greatly reduce the chance of interferrence from
outside of the TV bands.

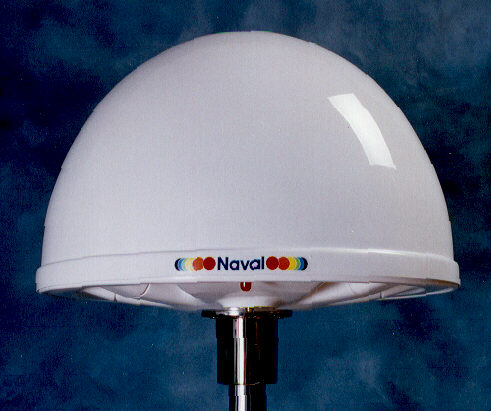

This compact and robust antenna incorporates a shell made of
thick UV-ABS plastic which is injected with polyurethane foam to
protect the elements and EMI sheilded internal amplifier. The mounting
base is cast from Almag Marine Aluminum Alloy which is Shot Peened for
extra strength. Mounting hardware is made of stainless acid-proof
steel. The Shielded Low Noise Amplifier is protected from static
charges and is removable for field repair or replacement.
The PR-422 is at the head of a new 4000 Series Marine Cassette
Amplifier System with ground isolated distribution passives introduced
in 1998. The Series 4000 is the result of painstaking engineering and
the use of state of the art components including high performance GaAs
Hetrerojunction Bipolar Transistors and MMIC devices.
PR-420CA
is identical to PR-422CA but without AM-SW radio reception
Technical Specification:
- Frequency range: 0.1-860 Mhz
- Average AM HF SW gain: 0.1~26.5 MHz, 12-15dB (Ka=0.12)
- Average Band 1/FM gain: 40~110 MHz, 25dB
- Average VHF/DAB+ gain: 170~240 MHz, 25 dB
- Average UHF gain: 470~890 MHz, tilt 20-25 dB (amp)
- VHF Noise figure: 3.0 (amp)
- UHF Noise figure: 2.5 (amp)
- Max output level: 111 dBuV min (2 signals-60 dBIM)
- Third order intermod products: >20dB IP3
- Antenna factor: Ka = 0.12 AM
- Filters: Band pass 100 Khz- 30 Mhz., 40-110 MHz., 174-230
MHz.,470-860 MHz.
- Broadband rejection filter: 140-165 MHz.
- Polarization: horizontal
- Antenna pattern: omni-directional
- Supply voltage to antenna: 15VDC nominal
- Current consumption: 130 mA Nominal
- Operating temperature: -40 to +55 C.
- Impedence: 75 ohm nominal
- Connector "F" type or BNC-75 (Standard come with "F" connector)
- Return loss: >10dB with optional output connector.
- Radome material: UV protected ABS
- Flange material: Stainless, Almag or Powder Coated Almag
- Internal stabilization material: Polyurathane foam injection
- Element material: copper foil
- Element type: three looped dipoles with Z match pcb

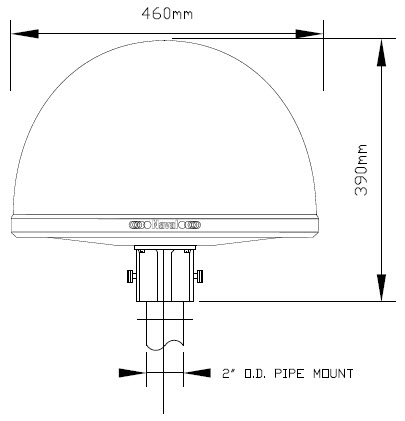

- Antenna dimensions: width 460mm (18.11 in), height 390 mm
(15.35 in)
- Shipping container dim: 19x19x16 inches
- Shipping container weight: 12-13 lbs with 1ft coax and
flange
CAGE
Code:
0GMC3
National Stock Number (NSN): 5985-01-379-9838, PN: PR-422
National Stock Number (NSN):
5985-01-369-2757, PN: PR-420
